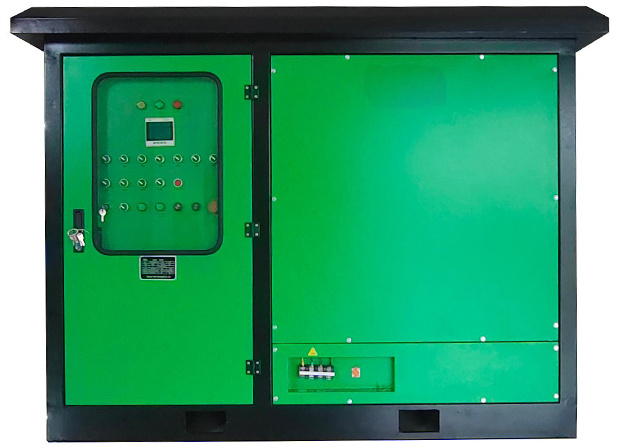

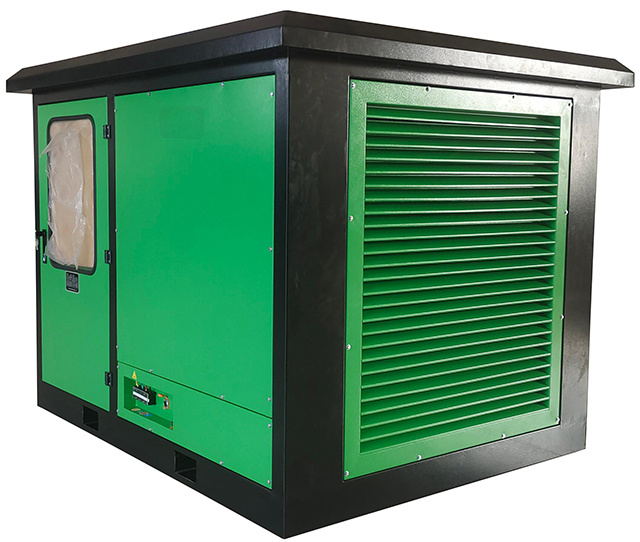

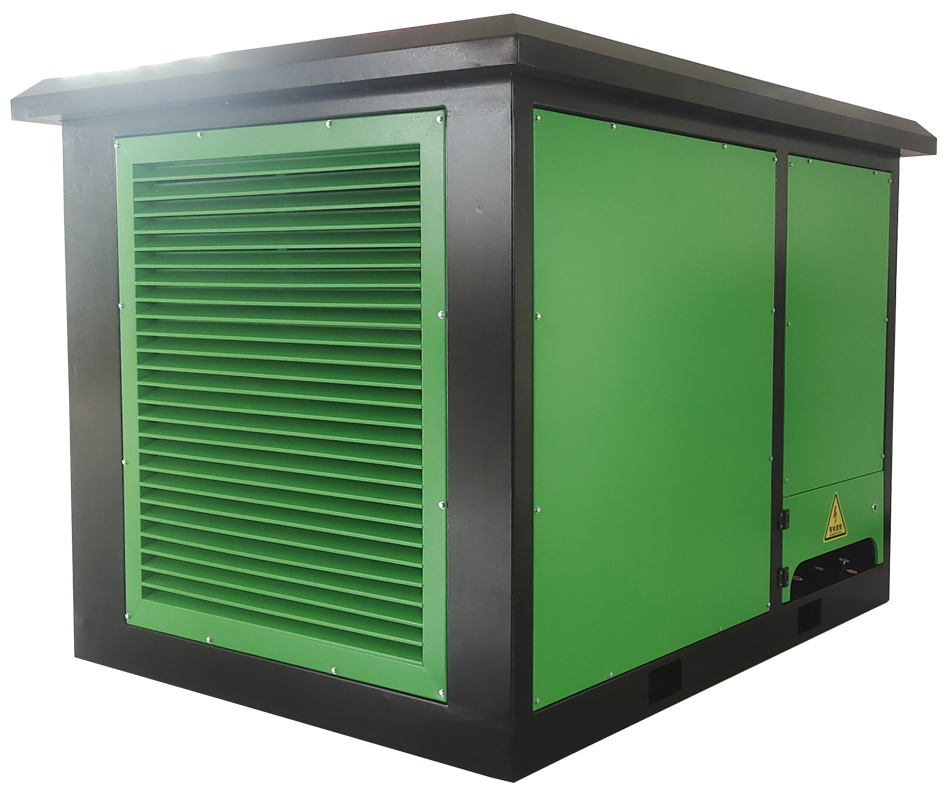

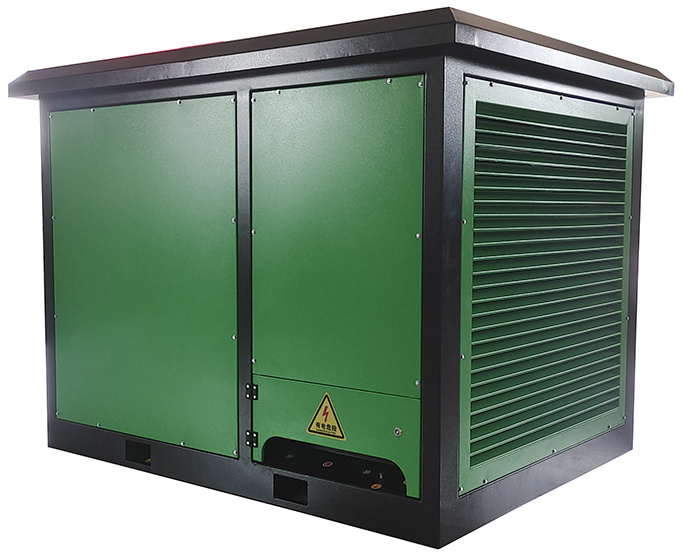

400kW Resistive Load Bank
Keyword:
Product Series
|
Power (kW) |
Voltage (kV) |
Frequency (Hz) |
Dimensions (mm/L*W*H) |
Reference Weight (Kg) |
|
100 |
400 |
50 |
1100*900*1000 |
320 |
|
200 |
400 |
50 |
1350*1100*1100 |
450 |
|
300 |
400 |
50 |
1500*1200*1200 |
650 |
|
400 |
400 |
50 |
1700*1500*1500 |
830 |
|
500 |
400 |
50 |
1700*1600*1600 |
950 |
|
600 |
400 |
50 |
1800*1600*1600 |
1150 |
|
800 |
400 |
50 |
1900*1800*1700 |
1900 |
|
1000 |
400 |
50 |
2300*1700*2100 |
2100 |
|
1200 |
400 |
50 |
2500*1800*2200 |
2300 |
|
1500 |
400 |
50 |
2500*1860*2300 |
2600 |
|
Power (kW) |
Voltage (kV) |
Frequency (Hz) |
Dimensions (mm/L*W*H) |
Reference Weight (Kg) |
|
1000 |
6.3/10.5 |
50/60 |
3000*2438*2500 |
3500 |
|
1200 |
6.3/10.5 |
50/60 |
4000*2438*2500 |
3900 |
|
1500 |
6.3/10.5 |
50/60 |
4000*2438*2500 |
4500 |
|
1600 |
6.3/10.5 |
50/60 |
5000*2438*2500 |
5000 |
|
1800 |
6.3/10.5 |
50/60 |
5000*2438*2500 |
6500 |
|
2000 |
6.3/10.5 |
50/60 |
6000*2438*2500 |
7500 |
|
2200 |
6.3/10.5 |
50/60 |
6000*2438*2500 |
8000 |
|
2500 |
6.3/10.5 |
50/60 |
6000*2438*2500 |
10000 |
|
3000 |
6.3/10.5 |
50/60 |
7000*2438*2500 |
12000 |
|
4000 |
6.3/10.5 |
50/60 |
8000*2438*2500 |
14000 |
|
5000 |
6.3/10.5 |
50/60 |
9000*2438*2500 |
15000 |
|
6000 |
6.3/10.5 |
50/60 |
12000*2438*2500 |
16000 |
|
7000 |
6.3/10.5 |
50/60 |
12000*2438*2500 |
17000 |
|
8000 |
6.3/10.5 |
50/60 |
12000*2438*2500 |
18000 |
Product examples
Rite-Hite 5000kW resistive load bank is used for power plant genset load testing. This product adopts a containerized design. The cooling system adopts the form of horizontal air inlet and vertical air outlet to dissipate heat, and the top is designed with a shroud, which can be used in rainy days. The control mode adopts local manual control and remote computer control. Support the saving and printing of test data. The resistor part is made of nickel-chromium alloy resistor, which is moisture-proof, anti-corrosion, and has good heat dissipation performance.
Parameter table
|
Product model |
RT4000KWLB |
|
Rated power |
4000KW |
|
Rated voltage |
DC4000V/2000V |
|
Control voltage |
AC380~400V, 50Hz, 3-phase 4-wire, terminal connection. |
|
Control mode |
Local panel manual control, remote software intelligent control, remote console control |
|
Resistors |
> Alloy resistors |
|
Cooling system |
> Axial fans |
|
> Forced air cooling, horizontal air intake/vertical air outlet, with a deflector. |
|
|
Sampling/Display |
> Display parameters: Voltage, Current, Power |
|
> Supports testing data storage and printing |
|
|
Load Gear |
> 1kW is the minimum step division |
|
Load Accuracy |
≤±2% |
|
Protection Level |
IP55 (Can be used on rainy days, with dehumidifying function) |
|
Corrosion resistance level |
C4, salt spray resistant |
|
Insulation level |
F |
|
Protection functions |
Over-voltage/current, high temperature, low airflow, phase sequence, fan failure, emergency stop, etc. |
|
Operating method |
Continuous operation |
|
Load expansion |
Parallel expansion with N load bankes |
|
Product color |
Customizable |
|
Product dimensions |
9000×2438×2600mm |
|
Product weight |
18000kg |
|
Product design |
Outdoor |
|
Design standards |
Compliant with international standards, military standards, ship standards, telecommunications standards |
|
Environmental temperature |
-40℃ to 55℃ |
|
Environmental humidity |
Less than or equal to 95% |
| Atmospheric pressure | 86 kPa to 106 kPa |
| Altitude |
≤2500m |
