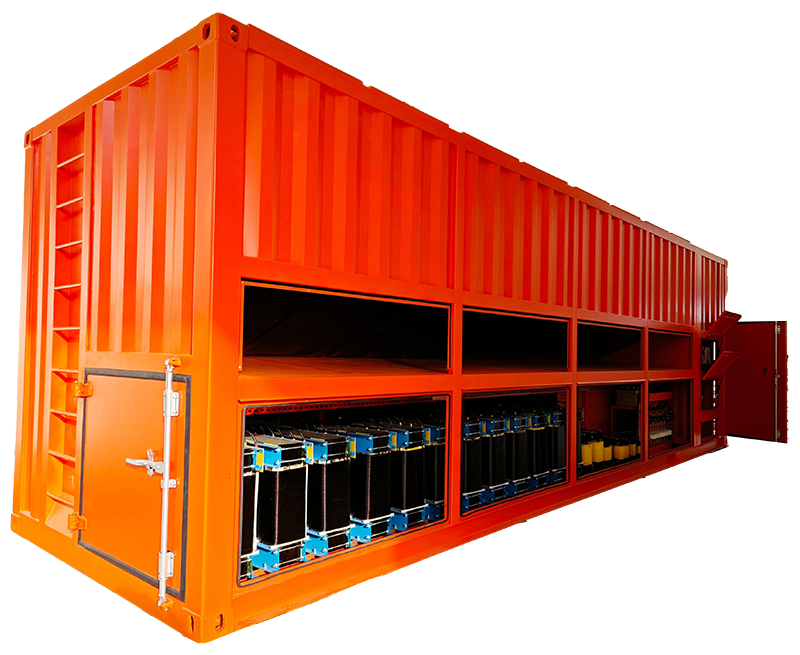

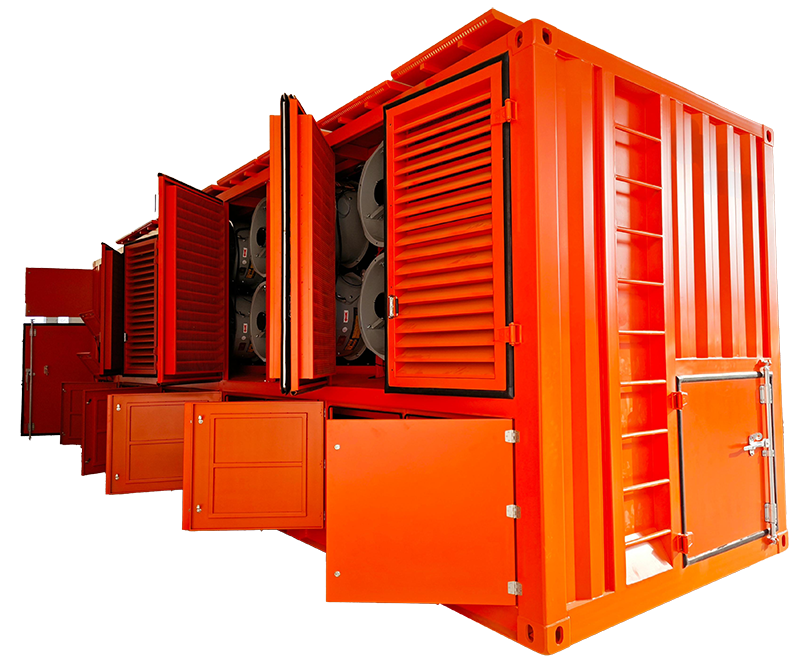

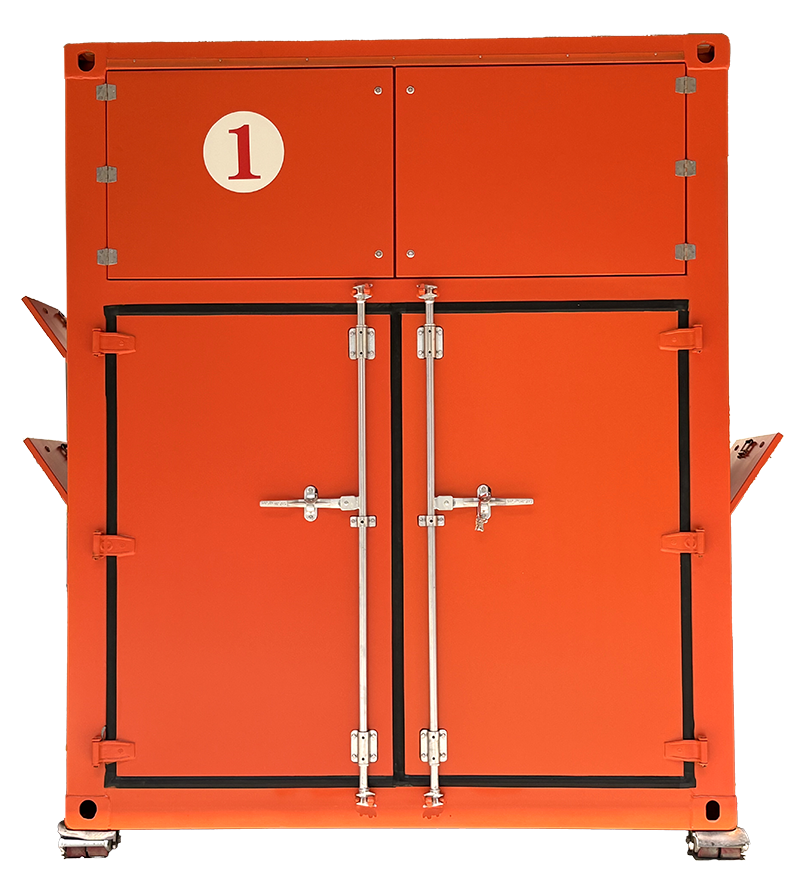

containerized load bank
Keyword:
|
Description |
||||
|
Model No. |
X5000L |
|||
|
Country of origin |
China |
|||
|
Apparent power capacity Active power capacity(PF 1.0) |
5000 kVA 4000 kW |
|||
|
Rated testing voltage Load step(Active power) Load resolution |
400 Vac 100+200+200+500+1000*3KW 100kW |
|||
|
Reactive power capacoty(PF0.8) |
3000 kVAR |
|||
|
Load step (Reactive power) Load resolution(Reactive power) Frequency |
10+20+20+50+100+100+150*18 KVAR 10kVar 50Hz. |
|||
|
Phases wires |
3ph 4w |
|||
|
Voltage Tolerance (Short Term Operation) |
+5% |
|||
|
Load Element Tolerance |
≤+2.5% |
|||
|
Insulation Test |
600 Vac |
|||
|
Load Connections |
Copper busbars |
|||
|
Protection
Control voltage |
Thermal emergency cut out |
|||
|
Air flow switch |
||||
|
Fan overload protection |
||||
|
Emergency stop |
||||
|
3ph 400VAC |
50/60HZ. |
|||
|

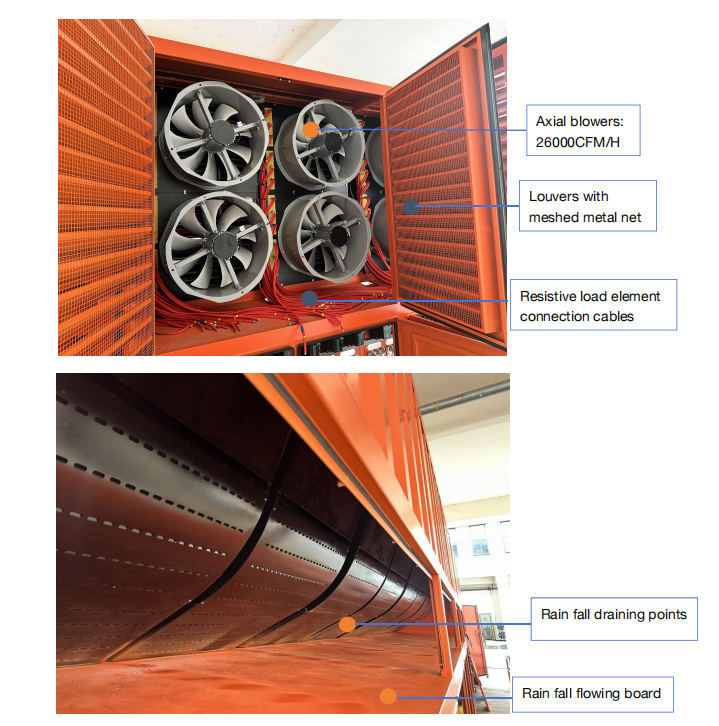

Airflow volume(Approx. CMM) |
26000 CM/H *8 |
|||
|
Airflow direction |
Vertical upwards air forced cooling |
|||
|
Fans Nos. Load switching contactor type |
12 pcs . (4kW each) 3 pole AC contactors |
|||
|
Rated maximum ambient temp. operation |
+60°C / +140°F |
|||
|
Rated minimum operation |
ambient |
temp. |
-20°C / -4°F |
|
|
Altitude rating |
≤2000 [m.a.s.l] or customized |
|||
|
Control chamber IP rating |
IP 54 outdoor |
|||
|
Enclosure material |
Containerised carbon steel with marine grade painting. |
|||
|
Portabality |
Standard ISO lifting points |
|||
|

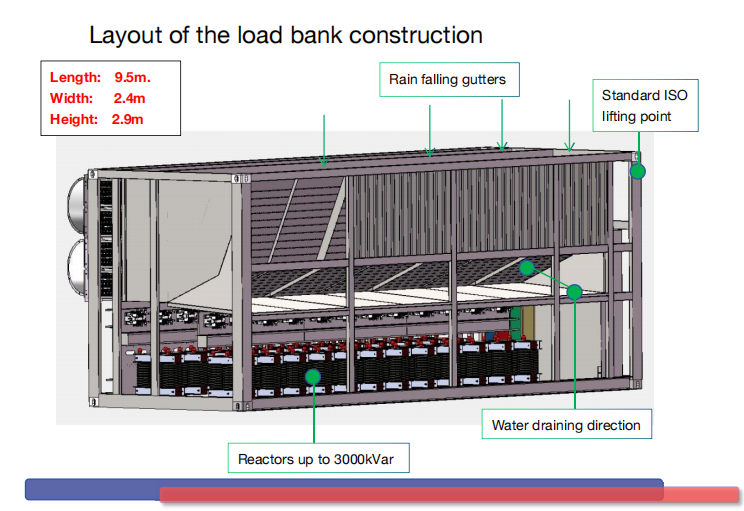

Enclosure dimentions |
||||
|
Length(mm) |
9500 |
|||
|
Width(mm) |
2438 |
|||
|
Height(mm) |
2800 |
|||
|
Weight of load bank |
20000 Maximum |
|||

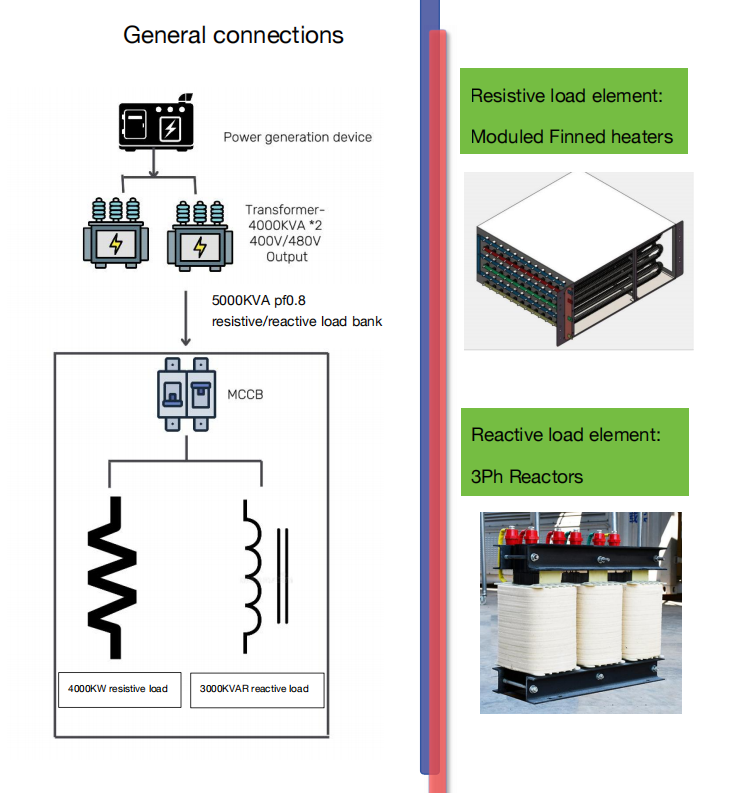

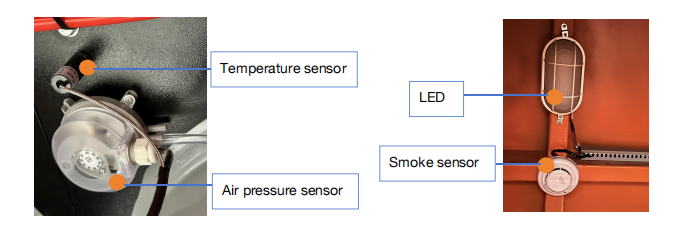

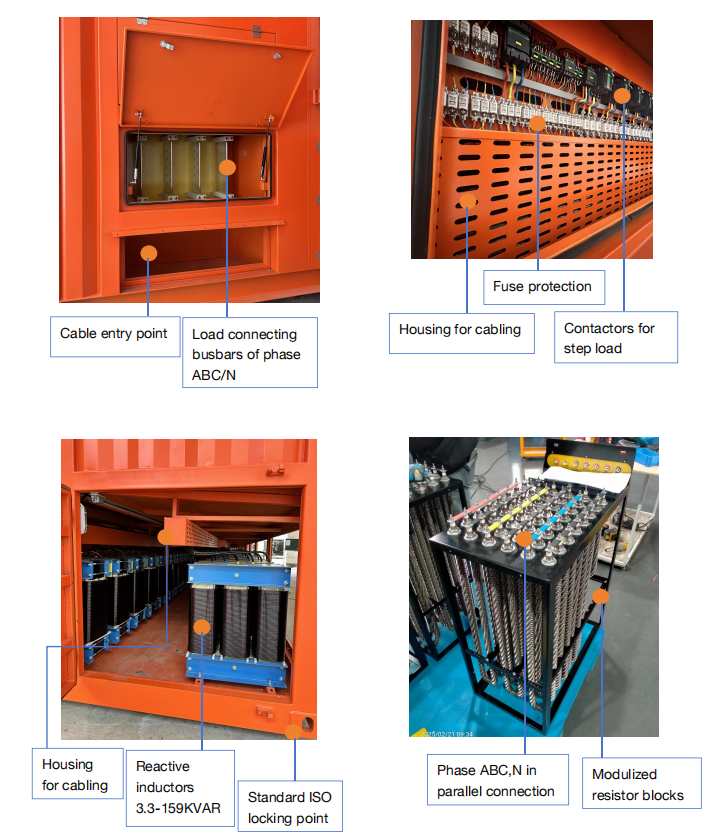

Understanding components of load banks

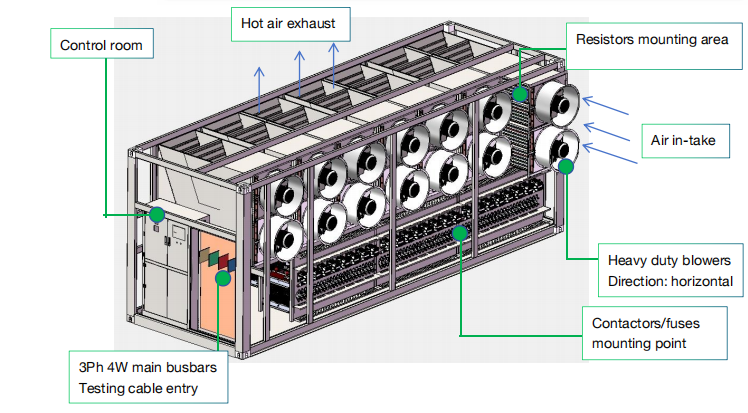

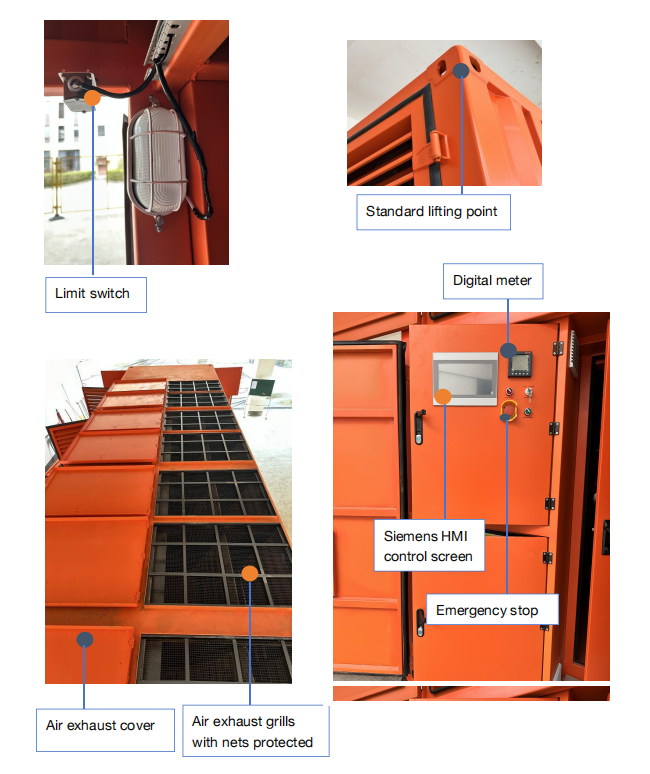

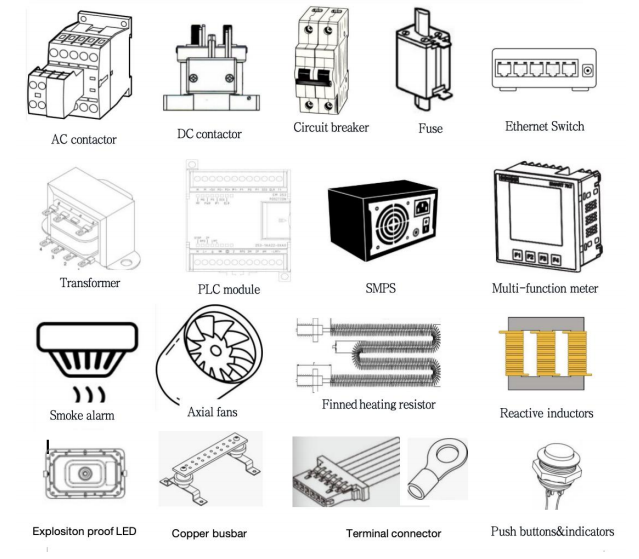

Load banks are assembled with various quantities of components . for example , Load element- reactors/resistors , PLC ,AC/DC contactors, fuses, circuit breakers, temperatures sensors, relays,switchingmode power supply ,voltage/current transformers ,limit switches, terminal connectors, LEDs, push buttons/toggles, cables, busbars etc. Pics for reference:
