500kW
Keyword:
Product Series
|
Apparent Power (kVA) |
Reactive Power (kvar) |
Active Power (kW) |
Voltage (kV) |
Power Factor |
Frequency (Hz) |
Dimensions (mm/L*W*H) |
Reference Weight (Kg) |
|
125 |
75 |
100 |
0.4/0.69 |
0.8 |
50/60 |
1500*1500*1500 |
900 |
|
250 |
150 |
200 |
0.4/0.69 |
0.8 |
50/60 |
1700*1600*1500 |
2000 |
|
375 |
225 |
300 |
0.4/0.69 |
0.8 |
50/60 |
1800*1600*1600 |
3200 |
|
500 |
300 |
400 |
0.4/0.69 |
0.8 |
50/60 |
2000*2000*2000 |
4000 |
|
625 |
375 |
500 |
0.4/0.69 |
0.8 |
50/60 |
2300*1800*1800 |
5000 |
|
750 |
450 |
600 |
0.4/0.69 |
0.8 |
50/60 |
2500*2000*1800 |
6000 |
|
1000 |
600 |
800 |
0.4/0.69 |
0.8 |
50/60 |
3000*2438*2000 |
7000 |
|
1250 |
750 |
1000 |
0.4/0.69 |
0.8 |
50/60 |
3000*2438*2896 |
8000 |
|
1500 |
900 |
1200 |
0.4/0.69 |
0.8 |
50/60 |
3500*2438*2896 |
9000 |
|
1875 |
1125 |
1500 |
0.4/0.69 |
0.8 |
50/60 |
4000*2438*2896 |
10000 |
|
2250 |
1350 |
1800 |
0.4/0.69 |
0.8 |
50/60 |
4500*2438*2896 |
11000 |
|
2500 |
1500 |
2000 |
0.4/0.69 |
0.8 |
50/60 |
5000*2438*2896 |
12000 |
|
2750 |
1650 |
2200 |
0.4/0.69 |
0.8 |
50/60 |
5500*2438*2896 |
13500 |
|
3125 |
1875 |
2500 |
0.4/0.69 |
0.8 |
50/60 |
6000*2438*2896 |
15000 |
|
5000 |
3000 |
4000 |
0.4/0.69 |
0.8 |
50/60 |
6000*2438*2896 |
20000 |
Product examples

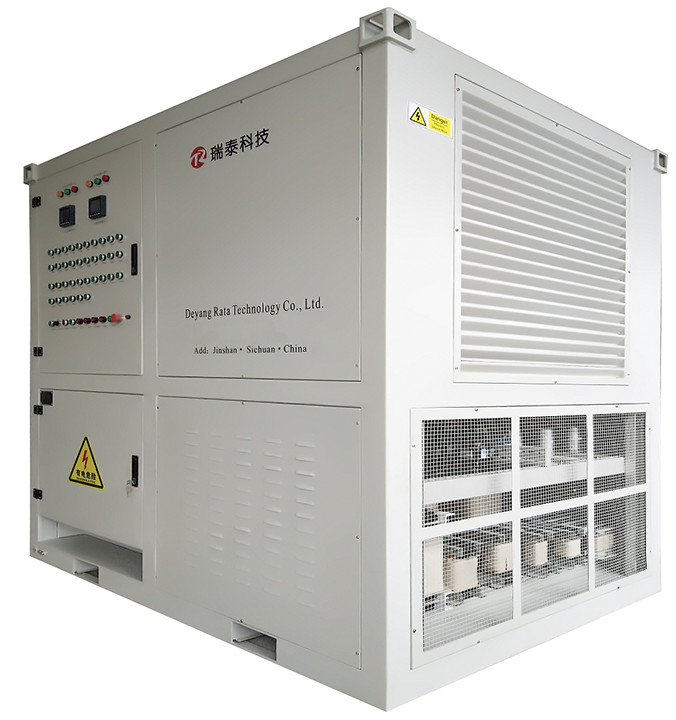

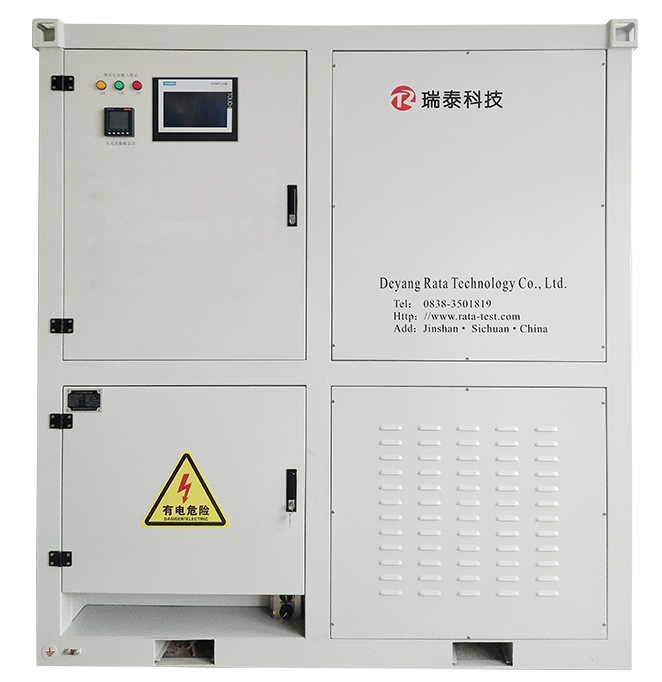

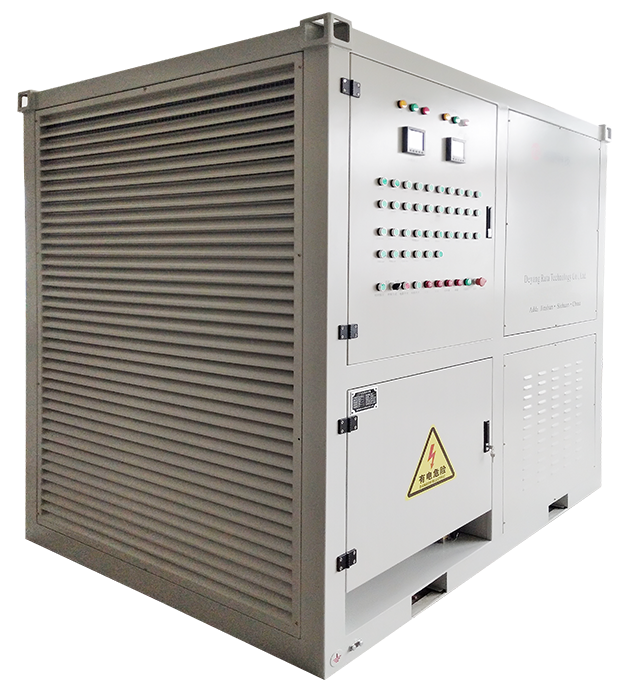

The 3125kVA/2500kW/2000kvar resistive-inductive integrated load bank adopts an outdoor container design, which is rainproof and moisture-proof. An inductive load has been added on the basis of the resistive load. The inductive load can be selected as either a parallel reactor or a magnetic valve type controllable reactor, with a power factor matched to 0.8.
The load bank uses nickel-chrome alloy resistance, which has good moisture-proof, corrosion-resistant, and heat dissipation properties. The reactors produced by Ruitai have high precision and reliable quality.
Parameter table
|
load bank Parameters |
System Composition |
Outdoor metal cabinet type, resistive load, inductive load, data acquisition, electrical control part, heat dissipation device, and load protection control |
|
Rated Capacity |
R2500kW; L2000kvar |
|
|
Rated Voltage |
AC400V |
|
|
Rated Frequency |
50Hz |
|
|
Power Factor |
0.8 |
|
|
Load Connection Method |
3-phase 4-wire, busbar connection |
|
|
Loading Accuracy |
±3% |
|
|
Three-phase Balance |
Unbalance ≤3% |
|
|
Working Method |
Continuous Operation |
|
|
Power Supply |
AC380V/50Hz/Three Phase Four Wire/Terminal Connection |
|
|
Cooling Method |
Forced Air Cooling (Side Inlet, Side Outlet) |
|
|
Insulation Class |
F |
|
|
Parameter Measurement Accuracy |
Instrument Sampling Accuracy 0.2 Class (Voltage ±0.5%, Current ±0.5%, Frequency ±0.1%, Power ±1%, Power Factor ±1%) |
|
|
Control Method |
Local Panel Control Remote Computer Control (Supports Test Data Storage and Printing) |
|
|
Resistive Load Parameters |
Minimum Load Resolution |
1kW |
|
Resistive Load Capacity |
2500kW |
|
|
Resistive Load Ranges |
1kW, 2kW, 2kW, 5kW, 10kW, 10kW, 20kW, 50kW, 100kW, 100kW, 200kW×11 |
|
|
Resistive Tubes |
8020 Nickel-Chromium Alloy |
|
|
Inductive Load Parameters |
Inductive Load Capacity |
2000kvar |
|
Inductive Load Levels |
1kvar, 2kvar, 2kvar, 5kvar, 10kvar, 10kvar, 20kvar, 50kvar, 100kvar, 200kvar×9 |
|
|
Reactors |
Each reactor: Insulation resistance 1500V 5MΩ, withstand voltage AC30000V for 1 minute |
|
|
Inductance error of each reactor: ±3%. |
||
|
Others |
Load Protection |
Short circuit, overvoltage, overcurrent, high temperature, air flow, emergency stop protection |
|
Atmospheric Pressure |
86-106Kpa |
|
|
load bank Dimensions |
6000mm*2438mm*2500mm (length*width*height; for reference only) |
|
|
Weight |
About 15000Kg (for reference only) |
|
|
Protection Grade |
IP23 when in use |
|
|
Usage Location |
Indoor and outdoor |
|
|
Installation Transportation |
The box has load-bearing lifting holes and meets the conditions for long-distance road transportation |
|
|
Load Expansion |
1 N unit load container can be expanded in parallel |
|
|
Box Color |
According to customer requirements |
|
|
Application Range |
Applicable to gas generator sets, marine diesel generator sets, land diesel generator sets, UPS systems |
|
|
System Standards |
Meets the testing of international standards, ship standards, military standards, and telecommunications standards |
