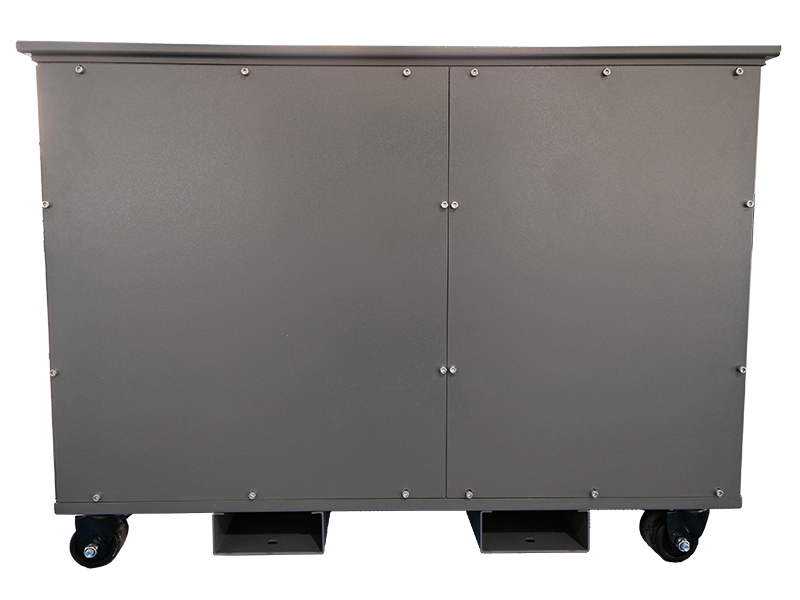

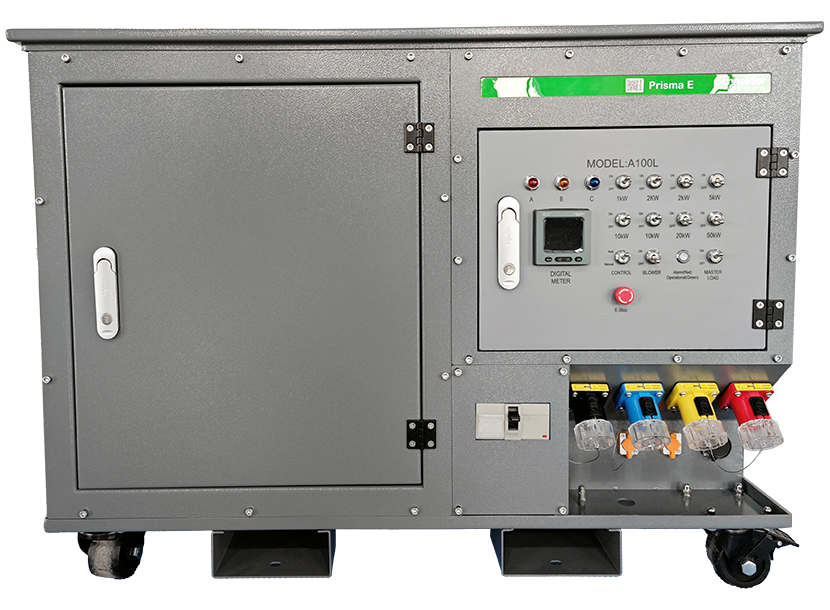

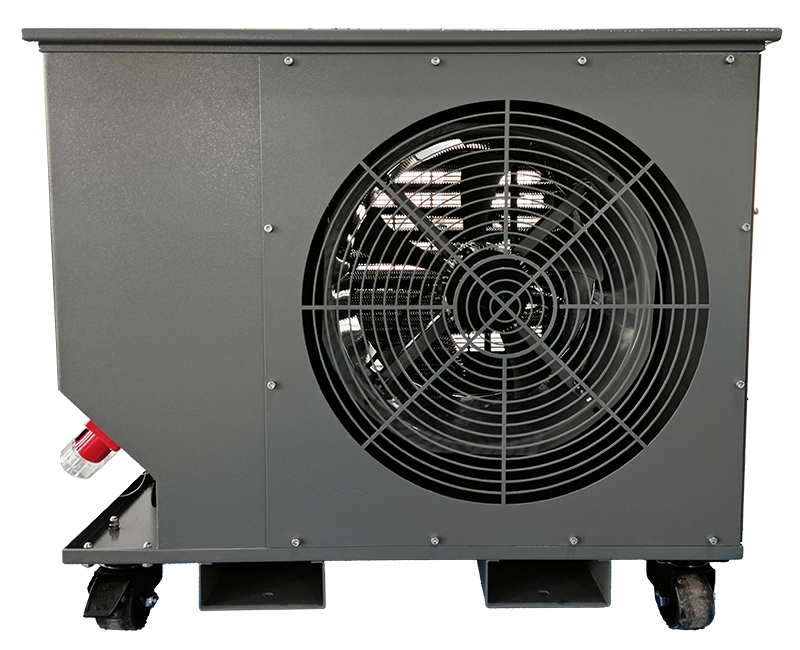

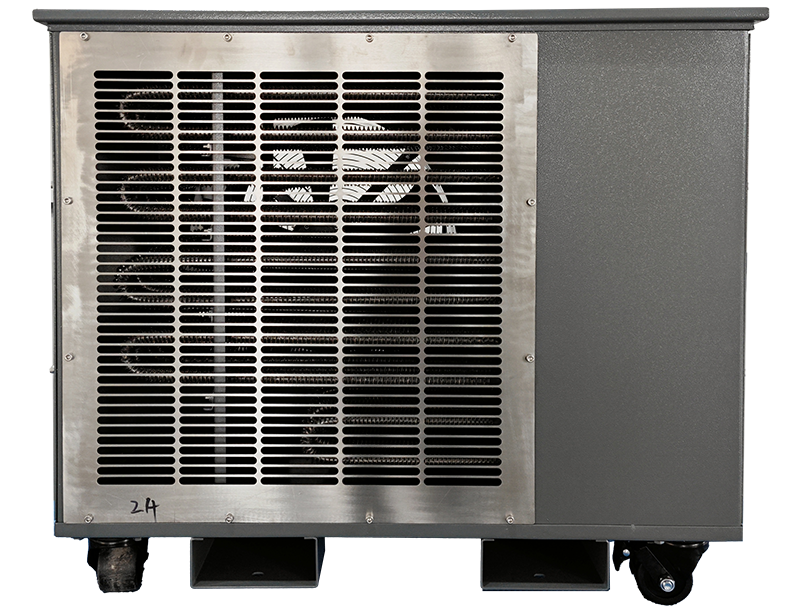

Schneider 100kW Portable Authorized Resistive Load Bank
Keyword:
Product Introduction
For precise and reliable testing of power systems, the Schneider Electric authorized factory 100kW 400V resistive load bank is a standout solution. Designed and manufactured by Deyang Rata Technology Co., Ltd., this load bank combines durability, precision, and advanced technology to meet the needs of industrial and commercial applications.
We stand as a globally trusted manufacturer, exporting load bank products to over 80 countries. Boasting extensive industry expertise in industrial control and power testing equipment, we deliver solutions tailored to professional needs. As an authorized factory, our load banks integrate seamlessly with Schneider Electric solutions. Plus, they offer customizable options to meet specific voltage, power, and control requirements.
Product Specifications
|
Country of origin |
China |
Protection |
Thermal emergency cut out; Air flow switch; Fan overload protection; Emergency stop |
||
|
Max capacity |
100kW |
Control voltage |
Optional 120V/220V/230VAC |
||
|
Load step |
1+2+2+5+10+10+20+50 kW |
Cooling method |
Air forced cooling |
||
|
Tested voltage |
400Vac |
Airflow volume(Approx.) |
995 CBM/Minute |
||
|
Frequency |
60Hz. |
Airflow direction |
Horizontal |
||
|
Phases |
3 |
Load switching contactor type |
AC contactors |
||
|
Wires(Star connection) |
4 |
Rated maximum ambient temp. operation |
+40°C / +104°F |
||
|
Load step resolution |
1kW |
Rated minimum ambient temp. operation |
-20°C / -4°F |
||
|
Voltage Tolerance (Short Term Operation) |
+5% |
Altitude rating |
<200m [m.a.s.l.] |
||
|
Load Element Tolerance |
± 5% |
Ccontrol chamber IP rating |
IP 23 |
||
|
Insulation Test |
500Vac |
Portabality |
4 universal wheels with brake |
||
|
Load Connections |
200A cam lock quick connector |
|
Yes |
